1.Starting up directly from Atmosphere pressure for Evacuation.
2.Used either solely as Rough Pumps,or in combination with other high vacuum pumps as Backing Pumps.
3.They find wide application in the fields of metallurg,chemical,light industry,medical,electronics and LSI industries.
4.They can not be used for evacuating the oxygenic,poisonous and explosive gases and gases which can react with pump oil easily.Neither can they be used as compressor and transmission pump.
|
Model
|
Pumping Speed(L/s)
|
ULtimate pressure(without 9as ballast)
|
Noise
dB(A) |
Temperature rise(℃）
|
Motor
Power(kw) |
Vacuum pump oil capacity(L)
|
Inlet dia.
(mm) |
Rotation speed of main shaft(rpm)
|
Cooling type
|
|
|
Partial pressure(Pa)
|
Total pressure(Pa)
|
|||||||||
|

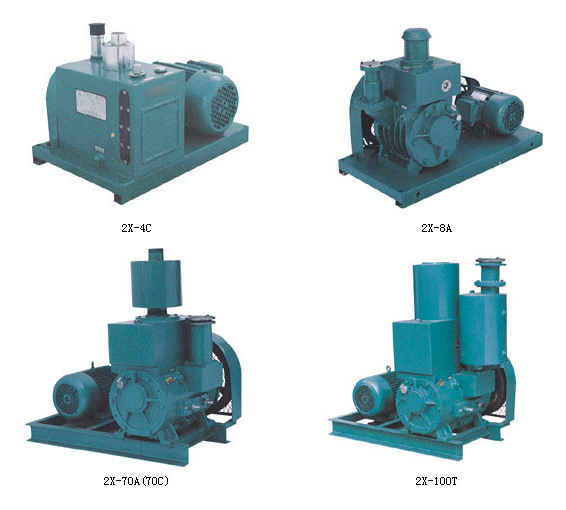

2X-2C
|
2
|
6×10 -2
|
≤2.5
|
72
|
40
|
0.37
|
0.35
|
25
|
700
|
Air-cooling
|
|
2X-4C
|
4
|
72
|
0.55
|
0.55
|
25
|
700
|
||||
|
2X-8A
|
8
|
75
|
1.1
|
2
|
40
|
320
|
||||
|
2X-8C
|
8
|
75
|
1.1
|
2
|
40
|
600
|
||||
|
2X-15A
|
15
|
80
|
2.2
|
2.8
|
40
|
320
|
||||
|
2X-30A
|
30
|
82
|
3
|
3.2
|
65
|
450
|
Water cooling
|
|||
|
2X-70A
|
70
|
86
|
5.5
|
6
|
80
|
420
|
||||
|
2X-100T
|
100
|
86
|
7.5
|
10
|
95
|
550
|
||||
